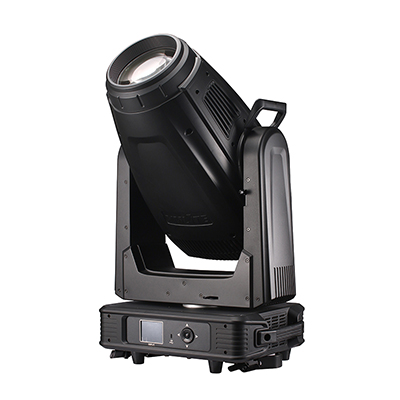

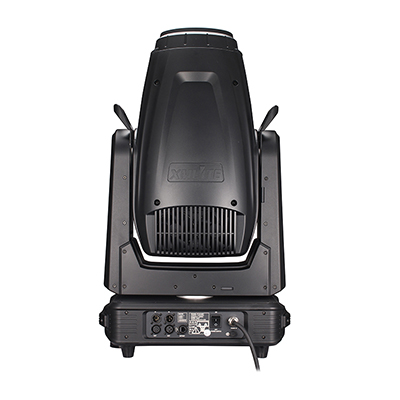

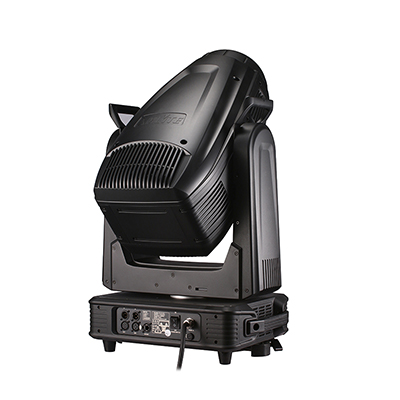

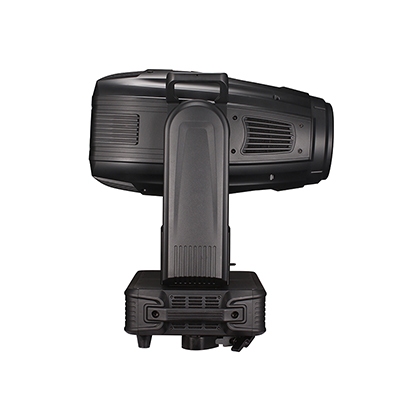

1000W LED Profile Moving Head Light

Home /
1000W LED Profile Moving Head Light

This is our new products:1000W led profile moving head light!before we design this we want a : supper brightness supper cheap supper high end level!!and now we think we have reach our goal!its brightness over 50000lm and its price lower because we place a very very big order to our supplier ,then we got a super good price in the raw material!

Get an Instant Quote

Technical Parameters

Technical Drawings

Videos

Technical Parameters

Channel mode:42CH/49CH/52CH;
Light source: 1000W LED white light module;
Light source color temperature: 7400-8400K;
Light source life: 20000 hours;
Rated voltage: AC110-240V~;

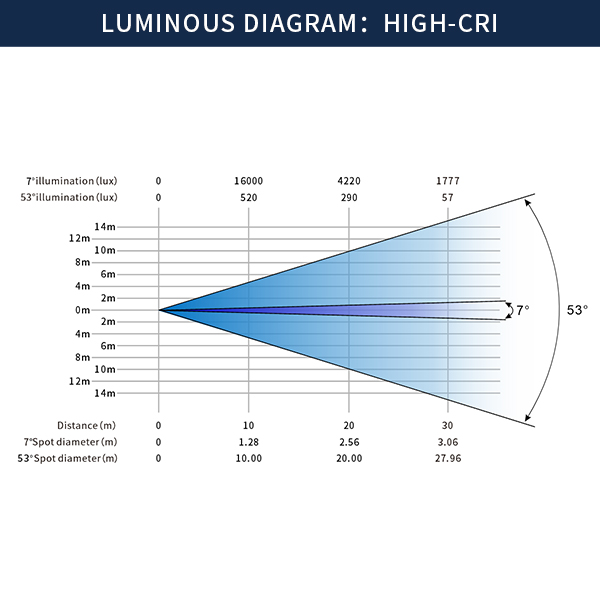

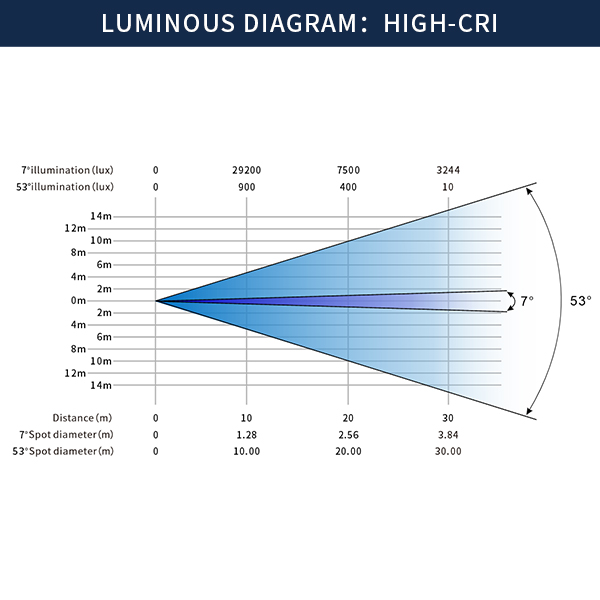

10m illuminance(min/max): 22800lux/1.02m,800lux/9.32m；
Lamp output luminous flux: 50988 lm for high brightness, 28581 lm for high brightness;
Frequency: 50/60Hz;
Current: 11.8A-5.9A;
Power: 1420W;
Power factor: PF≥0.95;
Display: 2.8-inch touch screen, can be reversed 180°;

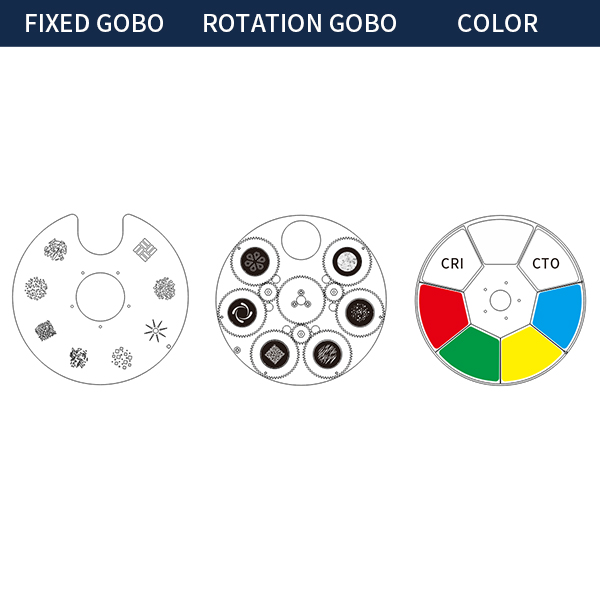

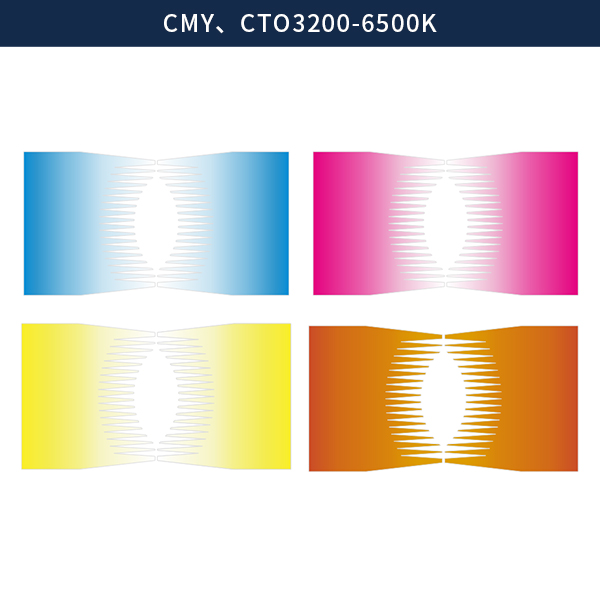

Color wheel: 6 fixed color chips + white light, CMY infinite color mixing, CTO color temperature, 3200-6500K;
Fixed gobo: 8gobos +1 white light;
Rotating gobo: 6gobos + 1 white light;
Rotating pattern LOGO piece size: 29.9mm;
Framing: Four-piece full-process graphic cutting module, the cutting pattern can be rotated 180°;
Zoom angle: 7°-53°；
Dual atomization: 1 light atomization, 2 heavy atomization can be superimposed, linear atomization function；
Iris: Mechanical aperture；
Prism: 4 phase prism；
Dimming: 0-100% electronic dimming;
Strobe: supports electronic strobe and adjustable speed strobe effects, and supports strobe macro function;
Positioning technology: Using high-precision magnetoelectric positioning system, XY-axis positioning is accurate;
USB: Supports unplugging the address code when there is no power, and can be used as an external interface for software upgrades;
Protocol interface: Supports RDM protocol interface, which can remotely
and intelligently change the address code through the console;
Bottom: integrated folding light hook;
Pan: 540°; 8Bit /16Bit;
Tilt: 270°; 8Bit / 16Bit;
IP Rate: IP20;
Product size: 435x300x785 mm;
Flycaes: 580x635x805 mm(Include Wheel);
Catron box:865x560x430 mm;
N.W.: 35 kg;
G.W.: 45.5 kg (catron box).
