9R Beam Moving Head, Beam 260 Moving Head, Bigger than 230 Beam
Nex260 ,260W beam moving head light has made many improvements over the original moving head beam 230(7R beam moving head light) . With the progress of optical technology and electronic components,products have the advantage of backwardness in upgrading.
Add one rainbow effects and 2 prism.Lamp power up to 260W,
compare with 230 beam , it is a little brighter .
Because it use new tech ,the Pan Til movement sound is better than 7R beam.
1.Lamp Color Tempreture:8400K;
2.Lamp lifespan:2000hours;

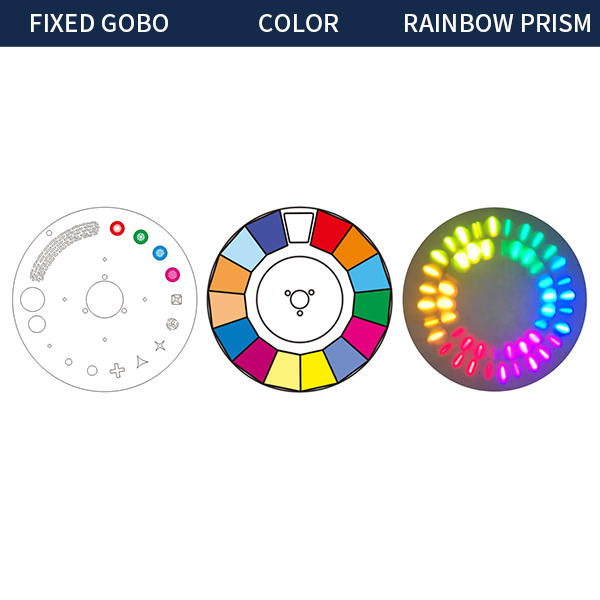

3.14 color+white;
4.14 gobo+white;
5.16facet prism+18facetprism(6+12double layer)
2 prism can over lay;
6.Weight；16.5kg
7. Colorful prism effects.
Technical Parameters
- Channels mode: 16CH/20CH/31CH;
- Lamp: Japanese lamp 260；
- Color Temperature：8500K；
- Light Source Luminous Flux: 9300 lm；

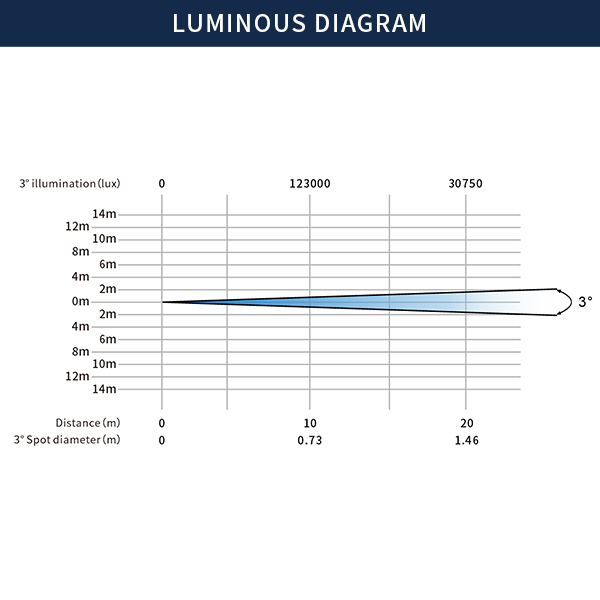

- 10m illuminance: 235000 lux；
- Power: AC110-240V~,50/60Hz;
- Total power: 310W;
- Beam angel: 3°;
- Display: 1.7 inch screen display;
- Color wheel: 14colors+white; Glass color chip : Imported Italian ODL color chip；
- Fixed gobo: 9 gobos + 4 stained glass gobos + dynamic effect wheel + 1 white light;
- Effect wheel: Colorful effect wheel, when the prism comes out, intervene in the effect wheel, there will be a colorful prism effect;
- Prism: 16 prisms + 8 prisms, with prism overlay and prism zoom function;
- Focus: Support linear focus; with frost function;
- Lens group: The output lens is fully coated, with a diameter of high light transmittance, and the beam is thick and strong.
- Lens group optical system: photoelectric reset system is adopted, which can automatically retrieve
and reset when a malfunction occurs; Dimmer: 0-100% mechanical dimming; - Strobe: Support mechanical strobe and adjustable speed strobe effect, support strobe macro function;
- Positioning technology：High-precision magnetoelectric positioning system is adopted，precise XY axis positioning；
- Pan: 540°; 8Bit / 16Bit;
- Tilt: 270°; 8Bit / 16Bit;
- IP Rate: IP20;
- Product size: 365x265x540 mm;
- Flycaes: 820x450x750 mm( Include Wheel );
- Catron box: 605x420x440 mm;
- N.W.: 16 kg；
- G.W.：20 kg(carton box).
Technical Drawings
