800W LED Profile Moving Head Light
Technical Parameters
- Channels mode: 37/41/50CH;
- Light source: 800W LED White LED Engine;
- Light source color temperature：8000K；
- Life time: 20000 hours;
- Light Source Luminous Flux：33100lm;
- Rated voltage: AC110-240V~；
- Frequency：50/60Hz;
- Current：10.4A-5.2A；
- Power: 1150W;
- Power factor: PF≥0.95;
- Display: 2.8 inch screen display,can reverse 180°;

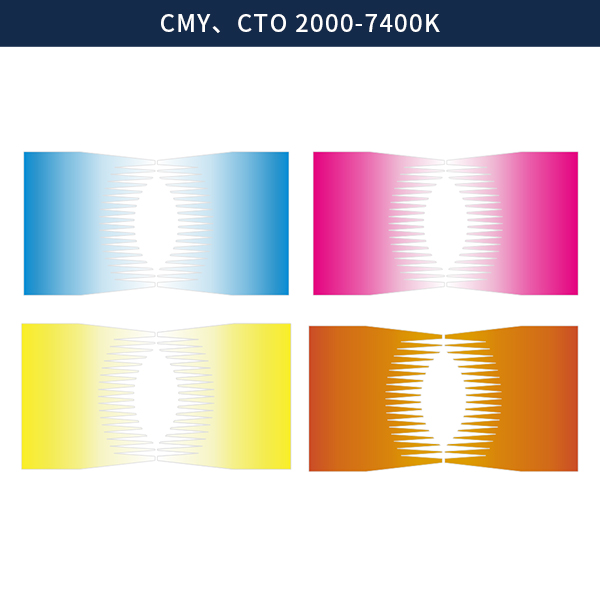

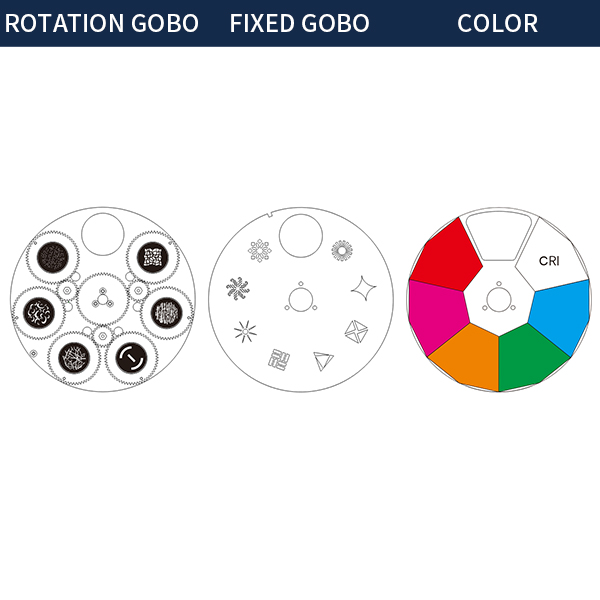

- Fixed gobo wheel: 5 fix colors+white+CRI+CMY.CTO:2000-7400K;
- Fixed gobo: 8 gobos+white；
- Rotation gobo：6 gobos+ white;
- Prism: 4 prism，rotatable；
- Frost: linear atomization function;

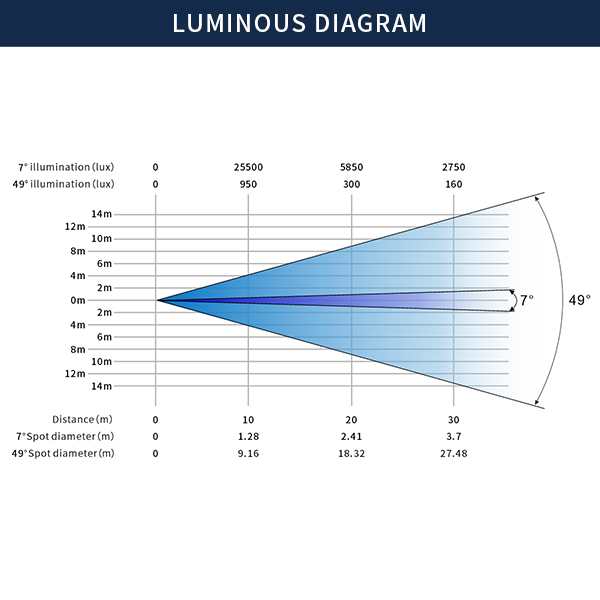

- Beam angel: 7°-49°;
- Rotation gobo size diameter: 27mm;
- Iris: Mechanical linear aperture, adjustable spot size;
- Cutting: four-piece full-process graphic cutting module, the cutting pattern can be rotated by 180°;
- Dimming: 0-100% mechanical dimming;
- Positioning technology: High-precision magnetoelectric positioning system is adopted，precise XY axis positioning.
- USB: Support to pull out the address code when the power is off, and can be used as an external interface for software upgrades;
- Support the RDM protocol interface, and remotely intelligently dial
the address code through the console; - Pan: 540°; 8 Bit/16Bit；
- Tilt: 270°；8 Bit/16Bit；
- IP Rate: IP20;
- Product size: 415x310x720 mm;
- Flycaes: 985x580x830 mm(Include Wheel);
- Catron box:855x485x505 mm;
- N.W.: 32 kg;
- G.W.: 34 kg (catron box).
Technical Drawings
