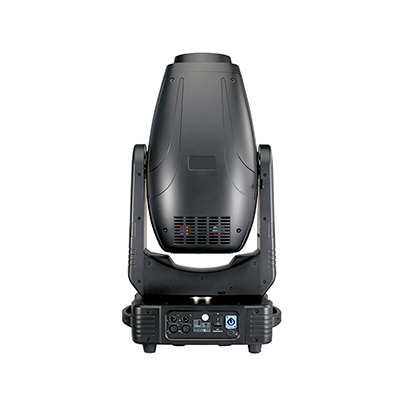

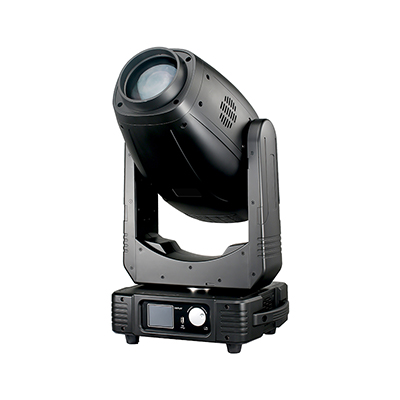

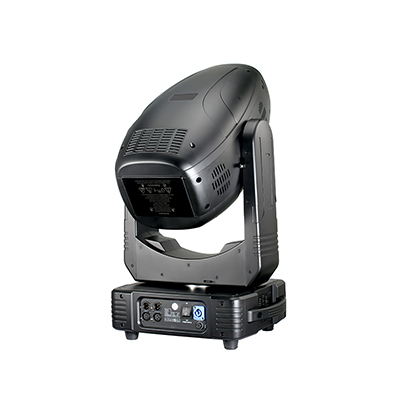

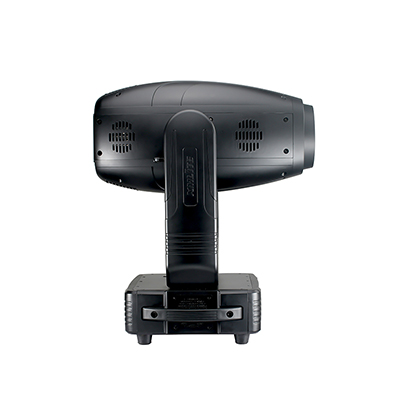

600W LED Profile Moving Head Light
Exp600 is a small and light full-function LED profile moving head lights. High-efficiency white LED module light source, optical zoom angle 6～42°; two pattern wheels, one rotating 6+1, fixed pattern 8+1; CMY infinite color mixing, fixed color 6+1, CTO linear color temperature; four-piece type Cutting system, the cutting pattern can be turned 180°.
Technical Parameters
- Channels mode: 37/41/50CH;
- Light source: 600W White LED Engine;
- Color temperature：7400K；
- Life time: 20000 hours;
- Light Source Luminous Flux: 21000 lm；
- Power: AC110-240V~,50/60Hz;
- Current: 7.6A-3.5A；
- Total power: 840W;
- Display: 2.8 inch LCD display,can reverse 180°;

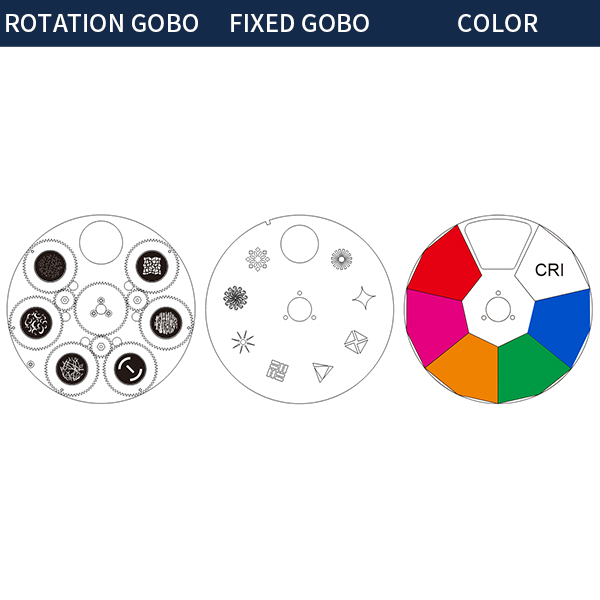

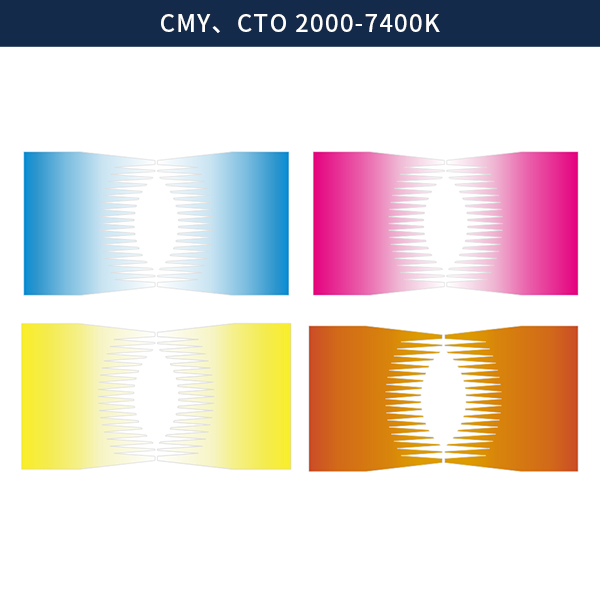

- Color wheel: 5 fix colors+white+CRI+CMY.CTO:2000-7400K；
- Fixed gobo: 8 gobos+white；
- Rotation gobo: 6 gobos+white,changeable;
- Gobo size diameter: 27mm,image diameter: 21.5mm;
- Prism: 4 facet prism,rotatable;
- Iris: Mechanical linear aperture, adjustable spot size;

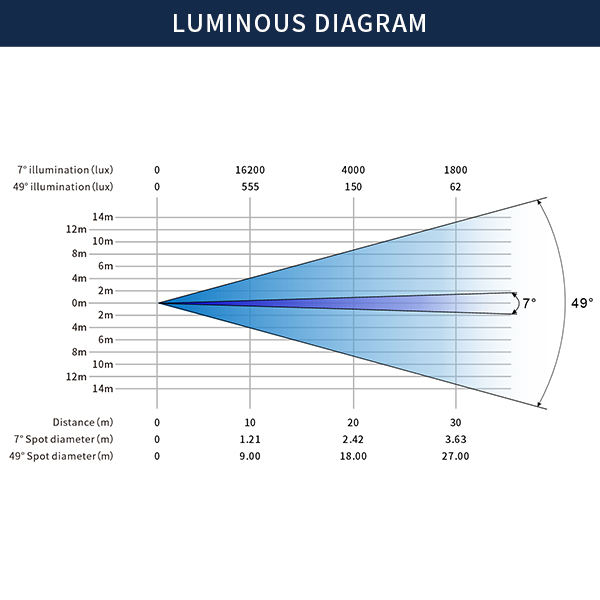

- Beam angel: 7°-49°;
- Frost: linear atomization function;
- Cut: 4 blades. After cut ,the pattern can rotation 180°；
- Dimmer: 0-100% mechanical dimming;
- Strobe: Support mechanical strobe and adjustable speed strobe effect, support strobe macro function;
- Positioning technology: High-precision magnetoelectric positioning system is adopted，precise XY axis positioning.
- USB：Support to pull out the address code when the power is off, and can
be used as an external interface for software upgrades; Support the RDM
protocol interface, and remotely intelligently dial the address code through the console; - Pan: 540°; 8 Bit / 16Bit;
- Tilt: 270°; 8 Bit / 16Bit;
- IP Rate: IP20;
- Product size: 405x310x735 mm;
- Flycaes: 985x580x830 mm(Include Wheel);
- Catron box:855x485x505 mm;
- N.W.: 32 kg;
- G.W.: 34 kg (catron box).
Technical Drawings
