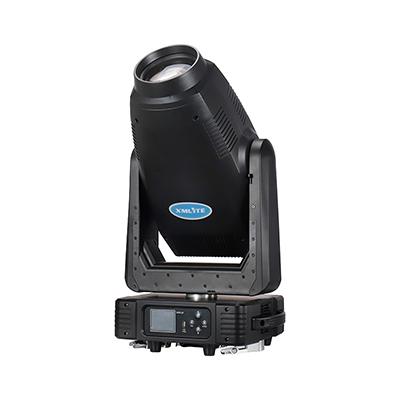

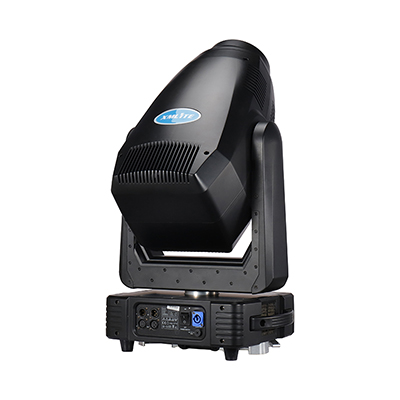

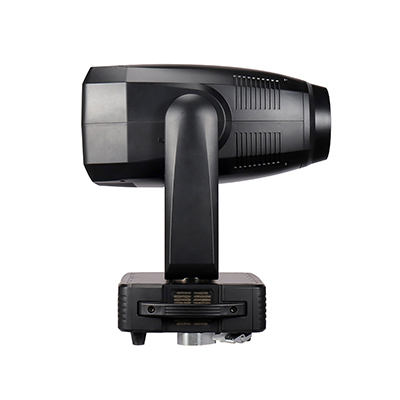

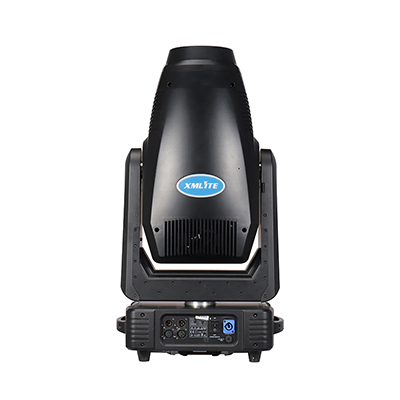

500W LED Profile Moving Head Light
H5 is a multi-color LED profile movinghead light launched by Xiangming Lighting in 2022. It adopts 600W LEDfive-color RGBAL(Red+Green+Blue+Amber+Lemon)LED light source module, and thelight source life is 20,000 hours;
H5 is the smaller version of H10 , as wefind the new led source which could make the profile effects much high efficiency!
it can realize digital color changewithout color wheel and CMY glass sheet, and the color is positive. Linearcolor temperature (2700K-7500K) white light high rendering index. During thedimming process, the CRI and color temperature change very little, CRI 96, R989 and TLCI can reach 94. Optical angle range: 5.5-39°.
The the traditional discharge lampprofile light source has good spectrum, high CRI, but short light source life;white LED profile source has long life but weak color effect, and thebrightness decreases greatly when the high CRI is taken; 5-color light sourcecombines the advantages of the above two and has a good spectrum. , CRI ishigh, and the light source has a long life.H10 is equipped with two gobo discs,6+1 rotating gobos, 8+1 fixed gobos, one prism disc, two atomization modes,four-piece cutting light system, which can be turned 180 degrees and can beturned off with one knife. The heat dissipation structure adopts high-densitycopper tube radiator, which realizes intelligent temperature management and ismore silent.
Technical Parameters
- Channels mode: 44CH/45CH/50CH;
- Light source：LED 500W;
- Light source color temperature:7500-8500K;
- Light source life: 20,000 hours；
- Lamp output luminous flux: 20000 lm;

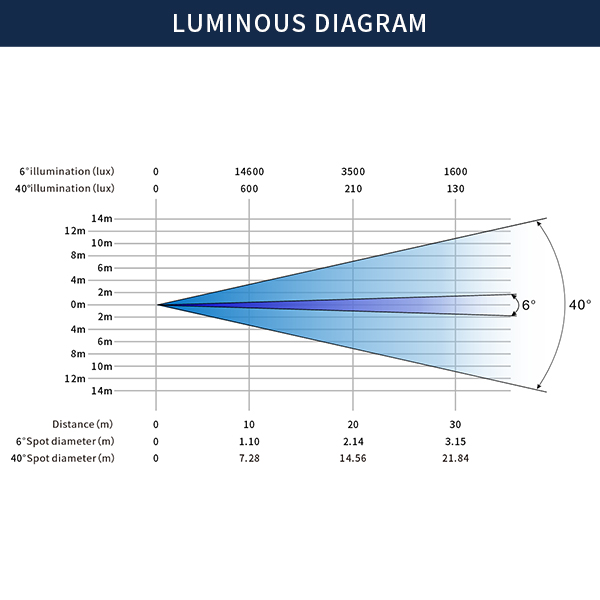

- Illuminance at 10 meters: 14200 lux, minimum spot 1.03 m;
- Rated voltage: AC110-240V~；
- Frequency: 50/60Hz;
- Current: 6.8A-3.4A；
- Power: 750W；
- Power factor: PF≥0.95;
- Display: 2.8-inch touch screen, can be reversed 180°;

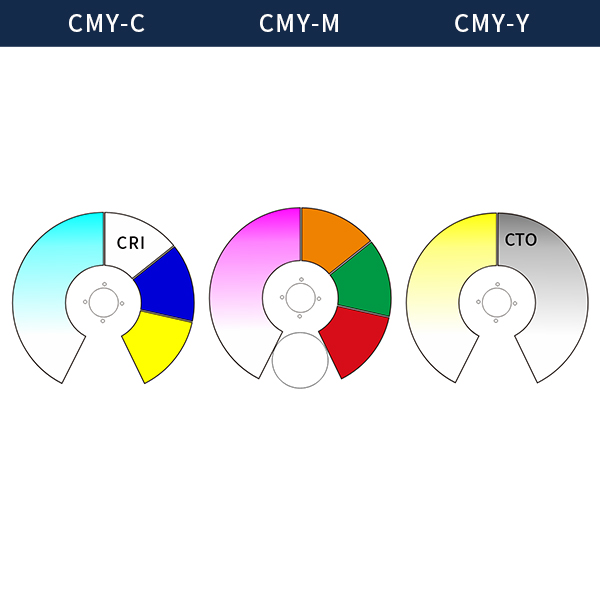

- Color wheel: 6 colors + white light + CMY + CTO linear dimming;

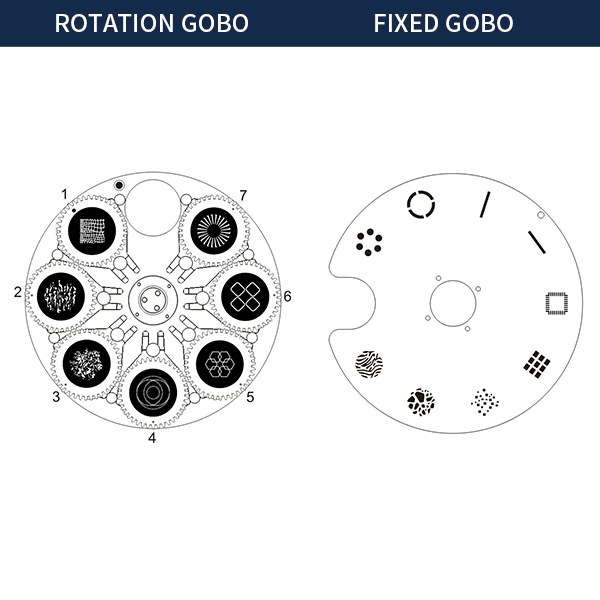

- Fixed GOBO: 9 patterns + 1 white light;
- Rotating gobo wheel: 7 removable gobo wheels + white light;
- Prism: 1 circular 3-prism, prism zoom function;
- Beam angle: 6°-40°;
- Focus: Support linear focus;
- Frost: Has frost function;
- Positioning technology: Using high-precision magnetoelectric
- positioning system, XY-axis positioning is more accurate;
- Dimming: 0-100% electronic dimming;
- Strobe: Supports adjustable speed strobe effect
and strobe macro function; - Pan: 540°; 8 Bit/ 16Bit;
- Tilt: 270°; 8 Bit / 16Bit;
- IP Rate: IP20;
- Product size: 370x255x610 mm;
- Flycaes: 935x485x810 mm(Include Wheel);
- Catron box:690x325x460 mm;
- N.W.: 23.5 kg;
- G.W.: 25 kg (catron box).
Technical Drawings
