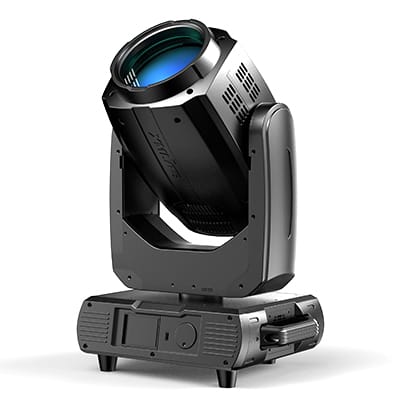

420W Moving Head Beam Light-LLP400
LLP400 400w beam moving head light is XMLITE in 2018 for the performance rental market. It is a beam that completely resolves the disputes of the light source customer complaint. Except 3 years guarantee for the lights other parts.The light source is guaranteed for 800 hours or 18 month.LLP400, can performance 11 kinds of prism effects. Beam effect sharp and clean.
If you see other lighting manufacturers have also launched light source warranty, please don’t forget XMLITE’s contribution to promoting the industry to improve services.
Technical Parameters
- Channelsmode:16CH/19CH;
- Lamp:NSL400W;
- ColorTemperature:7600K;
- 10milluminance(min/max):200000lux/0,33m,18500lux/0.57m;
- Power:AC110-240V~,50/60Hz;
- CRI:Ra=71;
- Total power:600W;
- Display:2.8inch screen display,can reverse 180°;
- Color wheel: 14 colors+white; Glass color chip:lmported ODL color chip;
- Fixed gobo:A hieh temperature resistant gobo wheel, 10 metal gobos + 3 color gobos + white lignt + l metal efect wneel
- Prism: The mode can produce 1l kinds of prism effects, which are composed of2 rotating prism wheel;Prism 1:16 prisms + straight 6 prisms,one frost;
- Prism 2: 32 prisms + straight 6 prisms, one double layer prism (6 prism + 12 prism);
- Beam angel: 2°;
Focus: Automatic focus,support linear focus; - Lens group optical system: The output lens reaches 148mm, the diameter of high light ransmittance,the beam is thick and strong
- Dimmer:0-100%mechanical dimming;
- Strobe: Support mechanical strobe and adjustable speed strobe effect, support strobe macro function;
- Positioning technology: High-precision magneto electric positioning system is adopted, precise XY axis positioning.
- USB:Supporto pull outthe address code when the power is of, and can be used as an external interface for software upgrades;Support the RDM protocol interface, and remotely intelligently dial the address code through the console;
- Pan:540°;8 Bit/16Bit;
- Tilt:270°;8 Bit/16Bit;
- IP Rate:lp20;
- Product size:440x310x590 mm;
- Flycaes:875x450x775 mm(lnclude Wheel)
- Catron box:480x460x600 mm;
- N.W.: 18 kg;
- G.W.: 20 kg (catron box).
Technical Drawings
