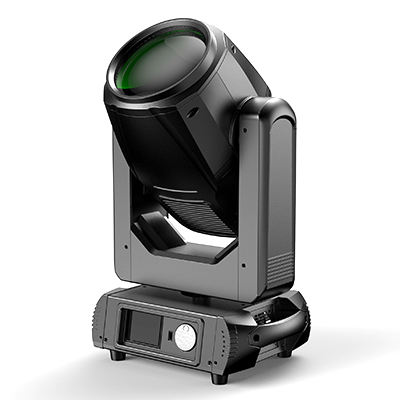

380W Beam Moving Head Lights
Technical Parameters
- Channels mode:16CH/20CH;
- Lightsource:OSRAM 371W S+
- Lightsource color temperature:7700K;
- Light source life: 3000 hours;
- Lamp outputluminous flux: 13500lm;
- Outputcolortemperature:6700k;
- CRI:80;
- llluminance at 10 meters:330000 lux, minimum spot 0.39 m;
- Power:AC110-240V~.50/60Hz;
- Total power:445W;
- Beam angle:2.2°:
- Display: 1.7-inch TFT display, can be reversed 180°;
- Color Wheels:14 colors+white :
- Color chip:imported ltalian ODL colorchip;
- Fixed gobo:6 gobos+ 5 beam gobos+ 4 stained glass gobos;
- Effect wheel: Colorful effect wheel, when the prism comes out, intervene in the effect wheel, there willbe a colorful prism effect!
- Double prism: 1 round 8 prism + round 48 prism, with prism superposition function,prism zoom function;
- Focus:supportlinearfocus;
- Frost:With frost function;
- Dimming:0-100% electronic dimming;Strobe: Support mechanical strobe and adjustable speed strobe effect, support strobe macro function;
- Pan:540°;8 Bit/16Bit;
- Tilt:270°:8 Bit/16Bit;
- IP Rate:lP20;
- Productsize:340x245x540 mm;
- Catron box:460x440x580mm;
- N.W.: 17.5 kg:
- G.W.: 19.5 kg (catron box).

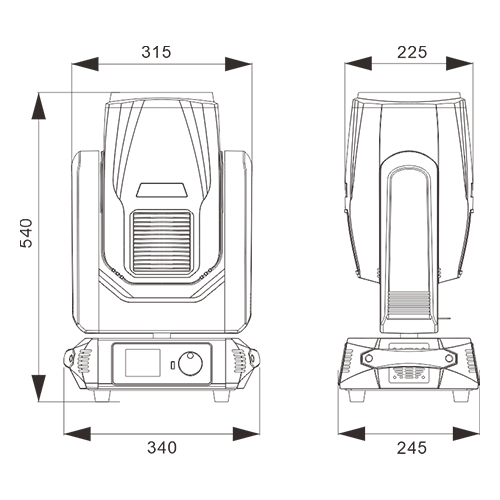

Technical Drawings
