37*20W LED Wash With Zoom
Technical Parameters
- Channels mode: 32RGB/32HSV/19RGB/19HSV;
- Light source: 20W RGBACL 6 in 1 LED,37pcs (Red+Green+Blue+Amber+Cyan+Lemon);
- Life time: 20000 hours;
- Light Source Luminous Flux: 11000 lm；
- Power: AC110-240V~,50/60Hz;
- Total power: 680W;
- Display: LCD color LCD touch screen;
- Lens: French GAGGIONE lens with high light transmittance PMMA, adjustable focus;

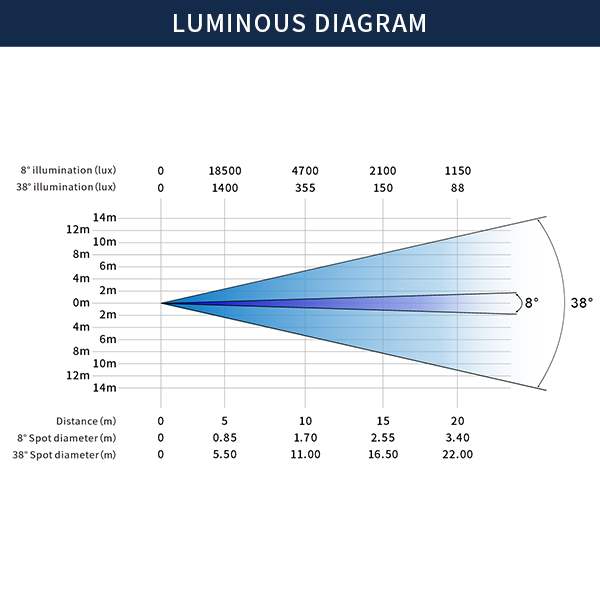

- Beam angel: 8°-38°;
- Dimming: 0-100% linear dimming, the color temperature and display index change very little during the dimming process, High CRI can be achieved in each color temperature segment;
- Ra:96 ; R9:93; TLCI:96；
The fixtures have their own color system, which can achieve the color consistency of multiple light. - Positioning technology: High-precision magnetoelectric positioning system is adopted，precise XY axis positioning.
- USB：Support to pull out the address code when the power is off, and can be used as an external interface for software upgrades;
- Support the RDM protocol interface, and remotely intelligently dial the address code through the console;
- Control mode: Support DMX512 mode, RDM (optional), self-propelled mode；
- Pan: 540°; 8 Bit / 16Bit;
- Tilt: 270°; 8 Bit / 16Bit;
- Data in/out: 3-pin and 5-pin XLR；
- IP Rate: IP20;
- Product size: 415X310X550 mm;
- Flycaes: 800x510x765 mm(Include Wheel);
- Catron box: 615x430x500 mm;
- N.W.: 17 kg;
- G.W.: 20 kg (catron box).
Technical Drawings
