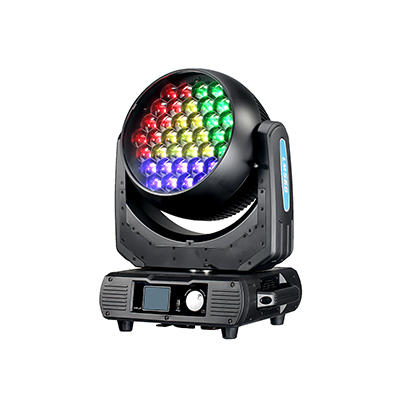

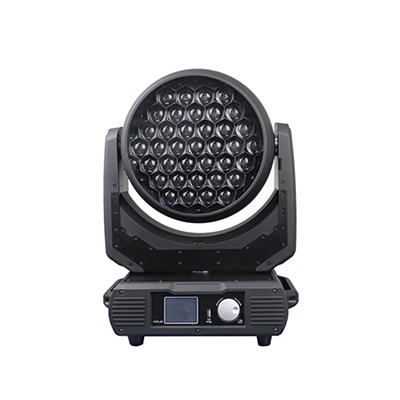

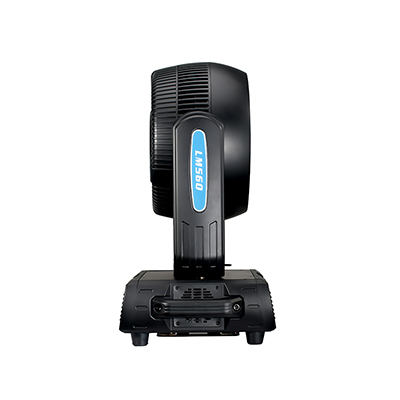

37*15W LED Wash With Zoom
LED moving head wash zoom have become more and more popular in recent years.
In addition to the high cost, many customers are interested in buying them. Recommend this 37*15W moving head wash zoom, because the customers who have used it have a good response, so repeat the article to promote it.
LM560 moving head wash zoom light is specially customized for rental guests.
Feature 1: with French Gaggione optical system.
Feature: 2: small size.
Feature 3: UTRAL brightness.
Feature 4 :This wash zoom uses high-density heat-dissipating aluminum, which has good heat dissipation and ultra-low noise, which is unexpectedly favored by theaters.
Technical Parameters
- Channels mode: 16/25/26CH;
- Light source: 15W RGBW 4 in 1 LED,37 pcs；
- Light Source Luminous Flux: 10200 lm；
- 10m illuminance(min): 5140 lux/1.6m；
- Power: AC110-240V~,50/60Hz;
- Total power: 600W;

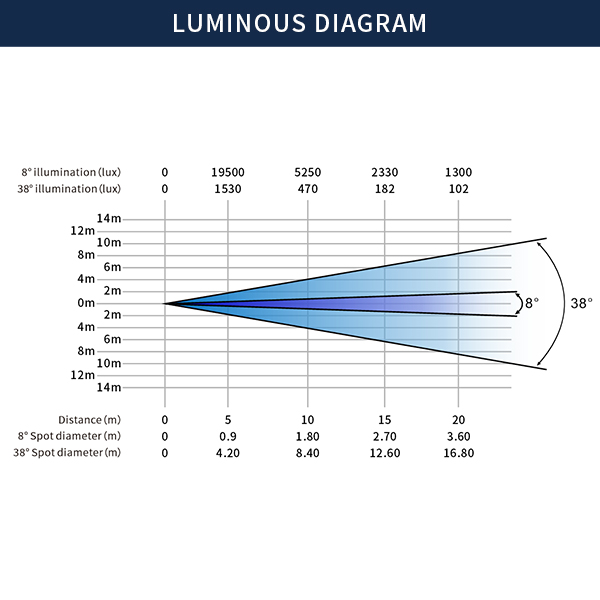

- Beam ange：8°-38°；
- Display: 2.8 inch screen display,can reverse 180°;
- Lens: Using PMMA French GAGGIONE integrated lens, the light output effect is higher;
- Dimmer: 0-100% linear adjustment;
- Assembled hook，Power cable hand in hand；
- USB: Support to pull out the address code when the power is off, and can be used as an external interface for software upgrades; Support the RDM protocol interface, and remotely intelligently dial the address code through the console;
- Positioning technology: High-precision magnetoelectric positioning system is adopted，precise XY axis positioning.
- Control mode: Support DMX512 mode, RDM, self-propelled mode；
- Data in/out: 3-pin；
- Pan: 540°; 8Bit / 16Bit;
- Tilt: 270°; 8Bit / 16Bit;
- IP Rate: IP20;
- Product size: 410x320x485 mm;
- Flycaes: 800x510x765 mm(Include Wheel);
- Catron box: 615x430x500 mm;
- N.W.: 17 kg;
- G.W.: 20 kg (catron box).
Technical Drawings
