350W LED Hybrid Light CMY
Technical Parameters
- Channel Mode：21CH / 25CH；
- Light Source：350W LED；
- Light source color temperature: 8000-9000K;
- Life time：20000Hours；
- Light Source Luminous Flux: 12793 lm；

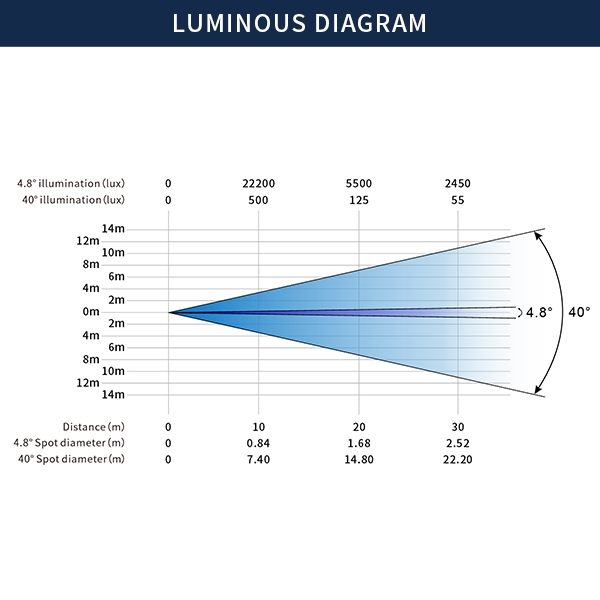

- 10m illuminance(min/max): 22200 lux/0.84m,500 lux/7.4m；
- Input voltage range：AC110-240V~, 50/60Hz；
- Total Power：416W；
- Beam ange：4.8°-40°；
- Display：1.7 inch display, can reverse 180°；
- Glass color chip : Imported Italian ODL color chip;

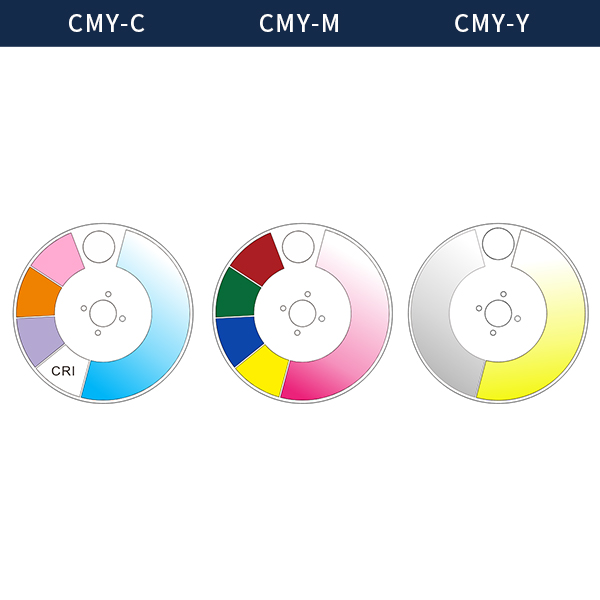

- Color Wheels：8 colors + white + CMY + CTO ；

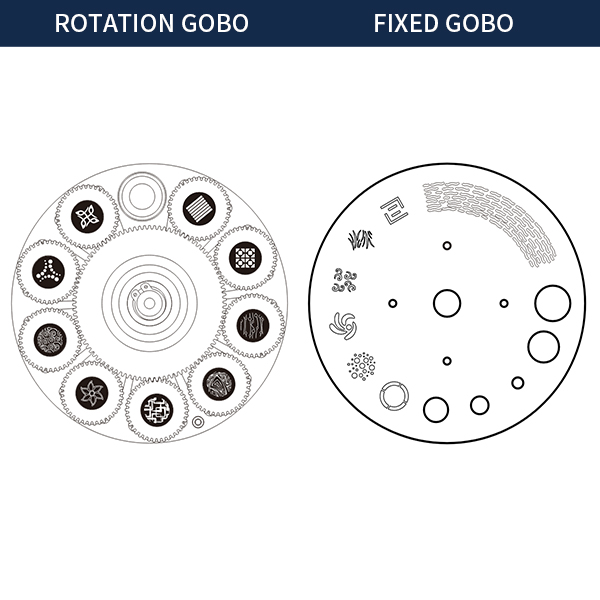

- Fixed gobo：10 gobos + white；
- Rotation gobo：9 gobos+ white；
- Gobo size diameter: 15.9mm, image diameter: 13mm；
- Double prism: 1 round 8 prism + round 3 prism, with prism superposition function, prism zoom function;
- Frost: Linear atomization function;
- Dimmer: 0-100% electronic dimming;
- Assembled hook；
- Strobe: Support electronic strobe and adjustable speed strobe effect,
support strobe macro function; - Positioning technology: High-precision magnetoelectric positioning
system is adopted，precise XY axis positioning. - Pan：540°；8Bit/16Bit；
- Til：270°；8Bit/16Bit；
- IP Rate：IP20；
- Product size：370x265x595mm；
- Flycaes: 850x460x710mm(Not Include Wheel);
- Catron box: 695x360x440mm;
- N.W.: 19kg;
- G.W.: 22kg (catron box).
Technical Drawings
