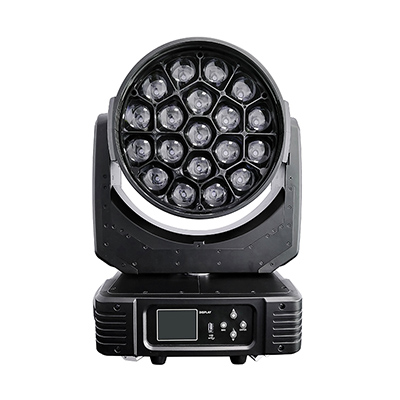

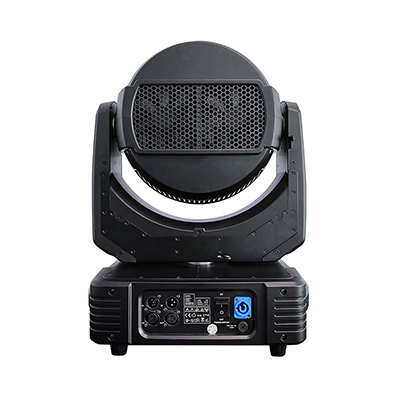

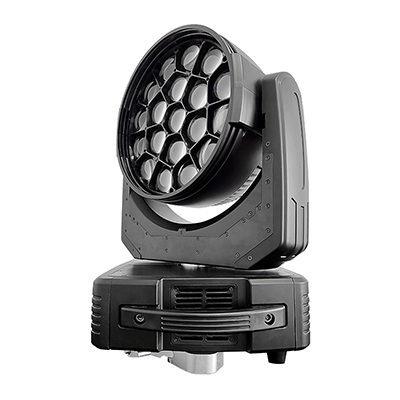

19*40W LED Moving Head Wash Zoom
Technical Parameters
- Channels mode: 20CH/30CH/77CH;
- Light source: 40W RGBW 4in1 LED,19 pcs；
- Life time: 20000 hours;
- Light output Luminous: 11000 lm;

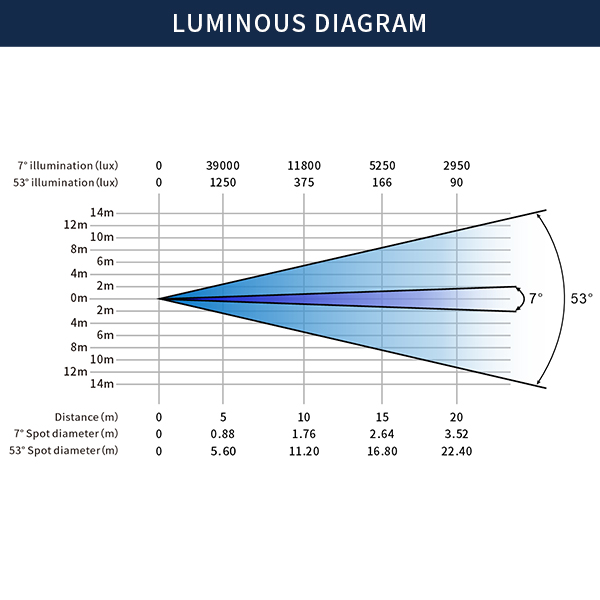

- 10m illuminance(min/max): 13300 lux/1.3m,450 lux/10m；
- Power: AC110-240V~,50/60Hz;
- Total power: 760W;
- Display: 2.8 inch LCD display,can reverse 180°;
- Beam angel: 7°-53°;
- Dimmer: 0-100% mechanical dimming;
- Control mode: DMX512, RDM，self-propelled mode；
- Positioning technology: Adopt the latest generation of positioning technology – magnetic encoder for precise positioning,
which is more than 20 times more accurate than Hall positioning, and is not disturbed by oily smoke, dust, and light. - USB: Support to pull out the address code when the power is off, and can be used as an external interface for software upgrades;
- Support the RDM protocol interface, and remotely intelligently dial the address code through the console;
- Pan: 540°; 8Bit / 16Bit;
- Tilt: 270°; 8Bit / 16Bit;
- IP Rate: Ip20;
- Data in/out: 3-pin and 5-pin XLR；
- Product size: 415X305X550 mm;
- Flycaes: 800x510x765 mm(Include Wheel);
- Catron box: 615x430x500 mm;
- N.W.: 17 kg;
- G.W.: 20 kg (catron box).
Technical Drawings
