19*15W LED Moving Head Wash Zoom
Project cost-effective hot-selling product: 19*15W LED moving head wash zoom.
LM285 uses 19 RGBW four-in-one high-brightness LED15W LED lamp , the angle is linearly adjustable from 7.9-38°, the color mixing is perfect, and the product weight is 12KG. A small angle can show a clear spot, and a large angle wash effect is not black in the middle.
The contrast between the small angle and the large angle of this product is small. The entire focusing stroke has only two color segments, which has been highly praised by professional customers.
Technical Parameters
- Channels mode: 14CH/25CH/90CH;
- Light source:15WRGBW 4in 1 LED,19 pcs;
- Life time:20000Hours;
- 5milluminance(min/max):9100lux/3.5m,730lux/0.7m;
- Power:AC110-240V-.50/60Hz;
- Total power:300W;

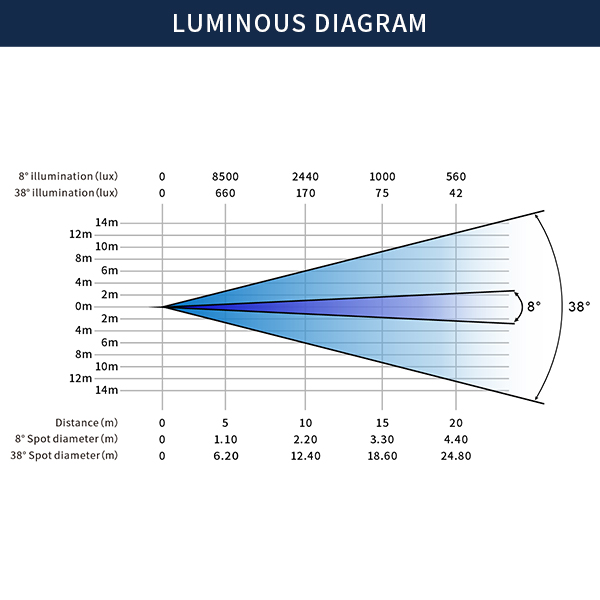

- Beam ange:8°-38°;
- Display: LCD display, can be reversed 180°;
- Lens: Using PMMA French GAGGlONE integrated lens, the light output effect is higher;
- Dimmer:0-100%linearadiustment;
- Source control mode:Pixelcontrol;
- Control mode: Support DMX512 mode, self-propelled mode, voice control mode;USB:Support to pull out the address code when the power is of, and can be used as an externalinterface for software upgrades;Support the RDM protocol interface, and remotely intelligently dial the address code through the console;
- Datain/out:3-pin ;
- Pan/Tiltwith automatic error correction system;
- Pan:540°:8 Bit/16Bit;
- Tilt:270°:8 Bit/16Bit;
- IP Rate:IP20:
- Product size:340x250x400mm;
- Catron box:510x335x420 mm;
- N.W.:12 kg;G.W.: 14 kg(catron box).
- At8 degrees, it can project a clear circular spot, and the angle can be zoom to wash.
PIXELCONTROLOPTIONAL

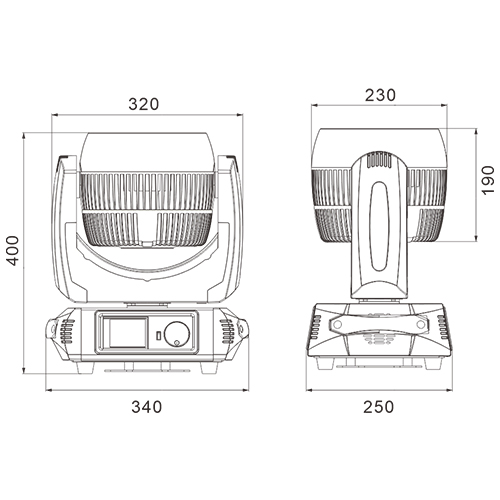

Technical Drawings
