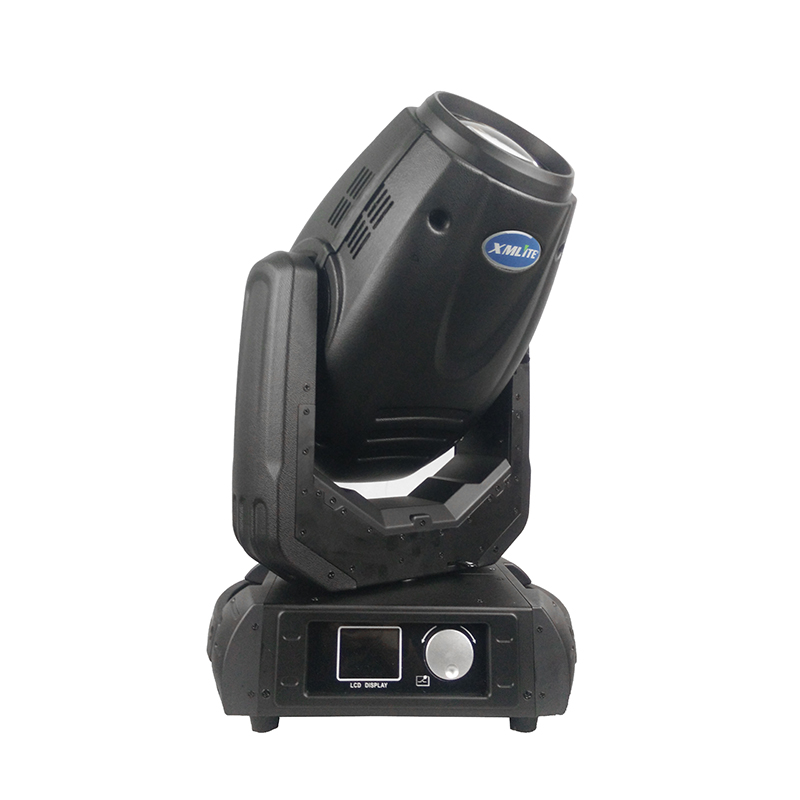

17R 350W Beam Spot Wash Moving Head Light
This is very classic 16R hybrid moving head light ,3 in1 function. Strongely reliable,it launched on 2014 year, and after almost 7 years using in market.it also have 280W power optional , beam ,spot ,wash 3 in 1 function can use almost allshows or di studio or wedding rooms.
Clear gobo effects and clear prism effect,will impressive you.
Technical Parameters
- Channels mode:16/24CH:
- Lamp: YODN MSD 350W S17;
- Power:AC110-240V~.50/60Hz;
- Total power:520W:
- Display:2.2 inch display;

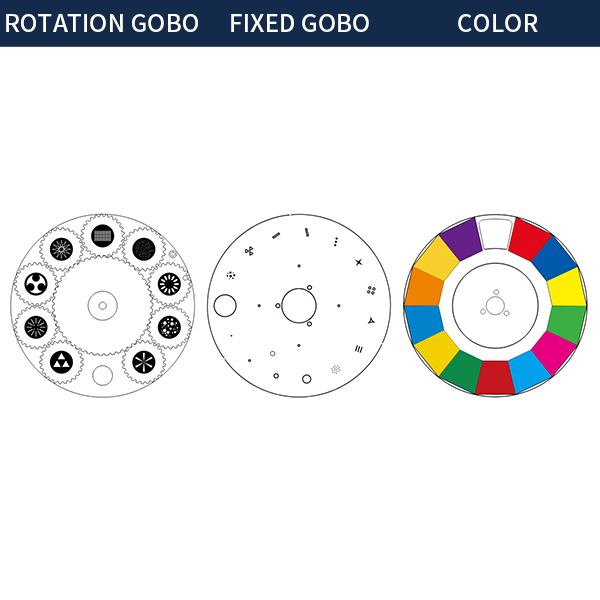

- Color wheel: 13 colors+white;
- Glass colorchip:lmportedltalian ODLcolor chip,
specialhigh temperatureresistant raw materials, bright colors; - Fixed gobo:14 gobos+white;
- Rotation gobo:9 gobos+white,changeable;
- Gobo size diameter:14.9mm;lmage diameter:13mm;
- Prism:8prisms+straight 6 prisms;
- Beam angel: 3”-11°;
- Frost:With frost function,it can be used as a wash light;
- Lens group: The lens is coated with 18 layers offilm to enhance high light transmittance and better restore colors;
- Dimmer:0-100% mechanicaldimming;
- Focus: Linear focus;
- Positioning technology: The photoelectric reset system is adopted, and it can automatically retrieve
and reset whenit happens accidentally; - Shell: Adopt streamlined ABS flame-retardant high-temperature-resistant flame-retardant material.withindependent lamp bodyand appearance design patents;
- Heat dissipation:the mode has built-in overheating protection, the intelligent fanautomatically tracks the temperature.and intelligentlyadjusts the speed,so that the components ofthe lamp can be kept ata lower temperature environment and prolong the service life.
- Pan: 540°:8 Bit/16Bit:
- Tilt: 270°:8 Bit/16Bit;
- IP Rate: lP20;
- Product size:365x260x580 mm;
- Flycaes:845x455x780 mm(nclude wheel);
- Catron box:460x440x580mm;
- N.W.: 16 kg;
- G.W.:20 kg(carton box).

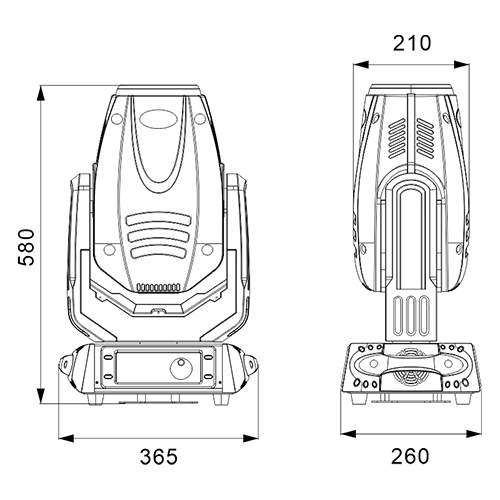

Technical Drawings
